Chap 1: Computer Abstractions and Technology

约 689 个字 3 张图片预计阅读时间 7 分钟

8 Ideas in Computer Architecture

Moore's Law
The integrate circuit resource double every 18-24 months.
User abstraction to simplify design
- Lower-level details are hidden to higher levels
- Instruction set architecture -- the interface between HW and SW.
- Make the common cases fast
- Performance via Parallelism
- Performance via Pipelining
- Performance via Prediction
- Hierarchy of memory
- Dependability via redundancy

Performance

Response time: How long it takes to do a task.
Throughput ( 吞吐量 ): Total work done per unit time.

Define \(\text{Performance} = \dfrac{1}{\text{Execution Time}}\)

Execution time

Elapsed Time（总响应时间） Total response time, including all aspects

e.g. Processing（处理时间）, I/O（I/O 操作时间）, OS overhead（操作系统开销）, idle time（空闲时间）.
CPU Time （CPU 时间）
Discounts I/O time, other jobs’ shares

我们一般只考虑 CPU 时间

CPU Clocking

Clock period: duration of a clock cycle.
用时钟周期代替具体的秒数。
Clock frequency(rate): cycles per second.

\[ \begin{align*} CPU\ Time &= CPU\ Clock\ Cycles \times Clock\ Cycle\ Time \\ &=\dfrac{ CPU\ Clock\ Cycles}{Clock\ Rates} \end{align*} \]

Performance improved by

Reducing number of clock cycles
Increasing clock rate

Hardware designer must often trade off clock rate against cycle count

\[ \begin{align*} Clock\ Cycles &= Instruction\ Count \times Cycles\ per\ Instruction(CPI)\\ \\ CPU\ Time & = Instruction\ Count \times CPI\times CPI\ Cycle\ Time\\ & = \dfrac{Instruction\ Count \times CPI}{Clock\ Rate} \end{align*} \]

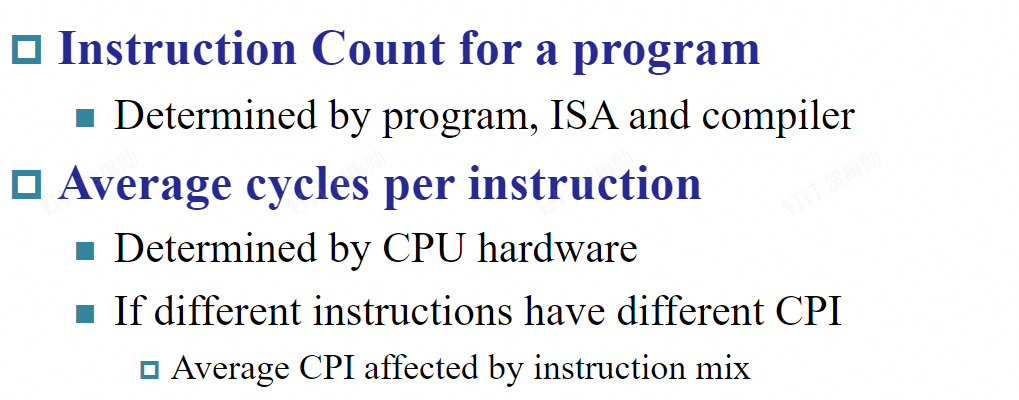

CPI is determined by CPU hardware.
如果不同指令有不同的 CPI, 我们可以用 Average CPI. （事实上许多指令的CPI并不相同）

综上 , \(CPU\ Time = \dfrac{Instructions}{Program}\times \dfrac{Clock\ Cycles}{Instruction}\times \dfrac{Seconds}{Clock Cycle}\)

alt text

因此若不同指令的 CPI 不同，不同指令的组合会影响 Average CPI

在这种意义上，Algorithm,Programming language, Compiler 也会对 CPI 带来影响

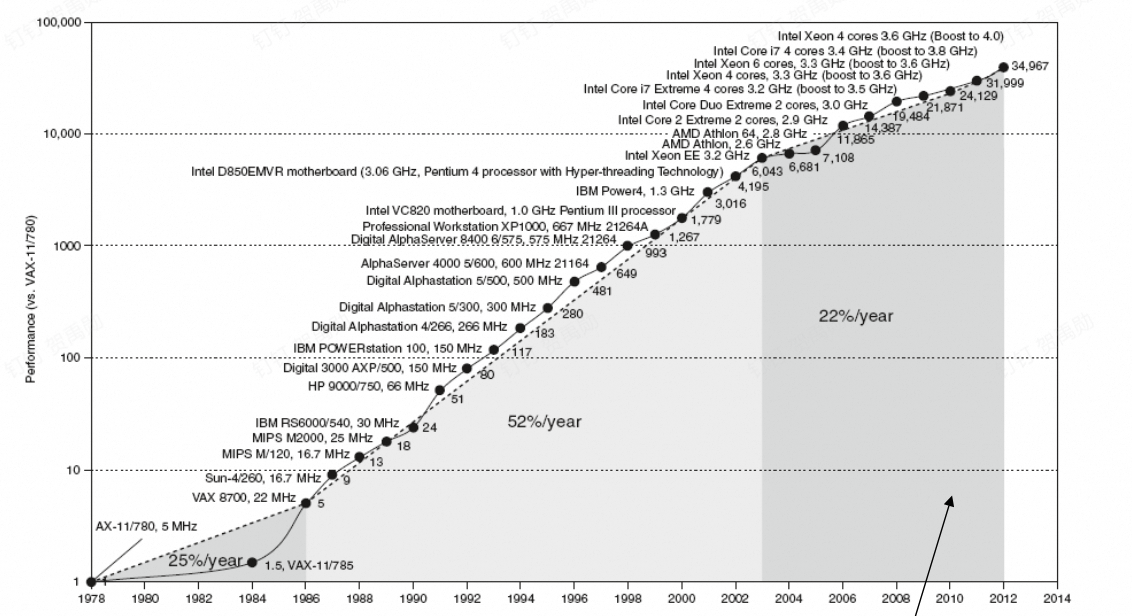

Incredible performance improvement

Uniprocessor progress

Three Walls

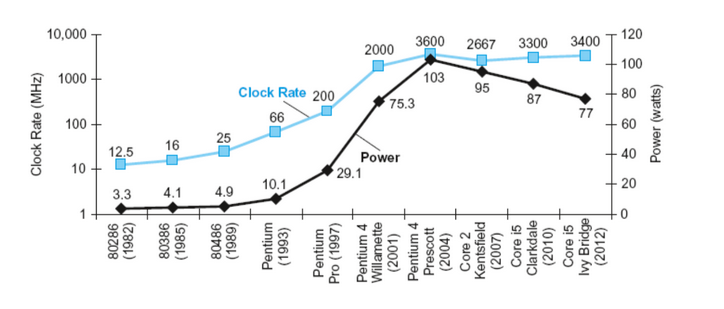

Power Wall
In CMOS IC technology

\(Power = Capactive\ load \times Voltage^2 \times Frequency\)

主频提高了很多，但功耗并没有得到这么多的提升，因为我们降低了工作电压 (5V-1V)

现在工作电压不能再降低了（否则泄漏电流占比太大），因此我们难以再提高频率
Memory Wall
Memory 的性能增长不如 CPU 的性能增长，大部分时间花在读写内存了，影响整体性能。
ITP Wall
Difficulty to find enough parallelism in the instructions stream of a single process to keep higher performance processor cores busy.

即处理器在尝试通过增加指令级并行性（ILP）提高性能时，所遇到的瓶颈。

Multiprocessors

requires explicitly parallel programming.

Amdahl's Law

Improve an aspect of a computer and expecting improvement in overall performance.

实际上 , \(T_{improved}=\dfrac{T_{affected}}{improvement\ factor}+T_{unaffected}\).

e.g. 对某一方面优化 90%, 并不能使 CPU 整体性能优化 90%.

Corollary: make the common case fast.
Low Power Not at Idle.
机器在没有工作时也有功耗损失。
MIPS as a Performance Metric
- MIPS: Millions of Instructions Per Second
- MIPS 是Million Instructions Per Second（每秒百万条指令）的缩写，是衡量处理器性能的一种方式
- 这个参数需要在其他参数一致时，才有比较意义。不同的 ISA 之间不能仅凭 MIPS 比较
- 简单直观但忽略指令复杂性和程序性质。
