Chap 1: Introduction

约 1110 个字 17 行代码 9 张图片 预计阅读时间 11 分钟

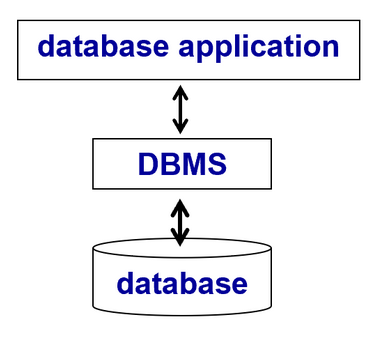

Database Systems

Purpose of Database Systems

Database systems offer solutions to all the below problems

  • Data redundancy and inconsistency
    • Multiple file formats, duplication of informaiton in differenct files
  • Data isolation
    • Multiple files and formats
  • Difficulty in accessing data
    • 最初的功能，“库”翻译的直接由来
  • Integrity problems
    • 完整的约束条件被藏在数据和代码中，而不是显式地声明。e.g. "account balance \(\bge\) 1"
  • Atomicity problems
    • Failures may leave databse in an inconsistent state with partial updates carried out e.g. 从 A 账户转账到 B，我们必须保证 A 转出 B 转入这两件事情同时进行，不能被打断。
  • Concurrent access anomalies
    • Uncontrolled concurrent accesses can lead to inconsistencies
  • Security problems
    • Authenticatoin, Priviledge, Audit
Audit：审计

数据库管理员进行操作会留下审计记录，并且管理员没有权限对审计记录进行修改；审计记录需要受数据库安全员管理和监督

Characteristics of Databases

  • Data persistence
  • Convenience in accessing data
  • Dat integrity
  • Concurrenc control for multiple user
  • Failure recovery
  • Security control

View of Data

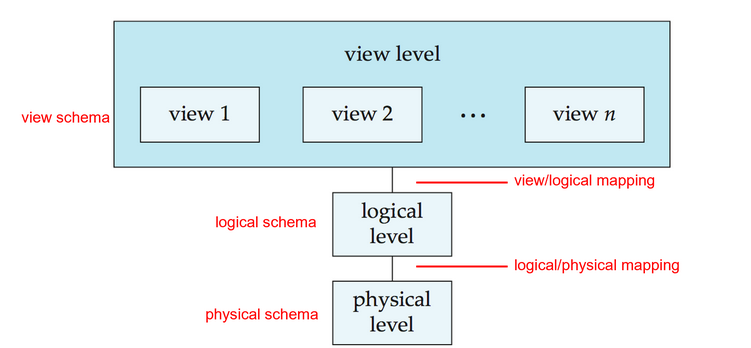

Three-level abstraction of databases

  • physical level: 物理中如何保存、实现（如磁盘）
  • logical level: 数据库中存储什么数据？数据之间的关系？
  • view level: 不同人看到不同的他们所需要的数据
Advantages
  • Hide the complexities
  • Enhance the adaptation to changes
    • 硬件环境变化（physical level），可以通过调整逻辑关系和映射来适应新的硬件环境。
    • 逻辑环境变化（logic level），可以通过 view 和 logic 的映射使得 view 尽量少变化。

Schema and Instance

Similar to types/class and variables/objects in programming languages.

  • Schema( 模式 ) - the logical structure of the database(physical/logical)
  • Instance( 实例 ) - the acutal content of the database at a particular point in time

Data Independence

  • Physical Data Independence( 物理数据独立性 ) - the ability to modify the physical schema without changing the logical schema
  • Logical Data Independence( 逻辑数据独立性 ) - the ability to modify the logical schema without changing the user view schema

本质是映射修改，但不用修改 schema.

Data Models

Data models is a collection of tools for describing data, data relationships, data semantics, data contraints.

  • Relational model( 关系模型 ) （表格）数据库系统层面
  • Entity-Relationship( 实体 - 联系 ) data model 需求分析层面
  • Object-based data models
    • Object-oriented（面向对象数据模型）
    • Object-relational（对象 - 关系模型模型）
  • Semistructured data model（XML）（半结构化数据模型）
  • Other older models:
    • Network model（网状数据模型）
    • Hierarchical model（层次数据模型）

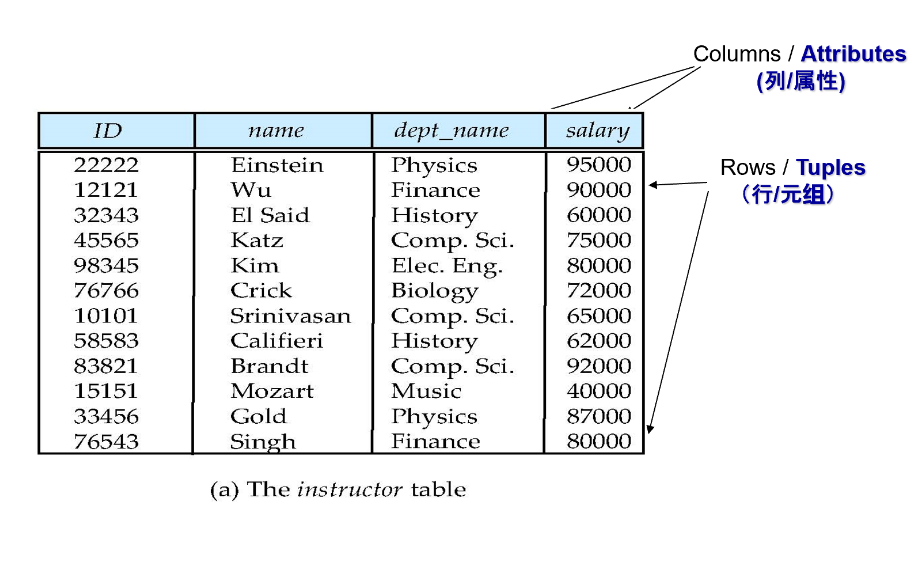

Relational Model

关系数据模型通俗来讲就是一张一张表格

Database Languages

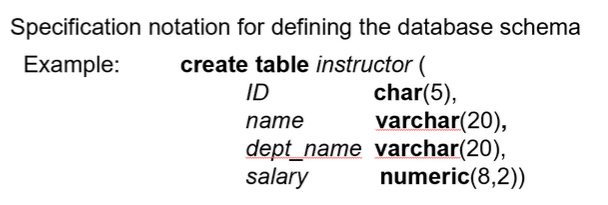

Data Definition Language(DDL)

Example

C 语言里的 struct 经过编译后全部变为了代码（有一张符号表）但数据库里不会。

Data dictionary contains metadata（元数据，i.e. data about data）

Data Manipulation Language(DML)

DML also known as query language

Two classes of languages:

  • Procedural ( 过程式 ) – user specifies what data is required and how to get those data e.g. C
  • Declarative (nonprocedural，陈述式，非过程式 ) – user specifies what data is required without specifying how to get those data e.g. SQL

实现从数据库中获取年龄大于 18 岁的用户

  1. C language

    // 伪代码示例
void getAdults() {
// 1. 打开数据库连接
connectDB();
// 2. 遍历所有用户
while (user = nextUser()) {
// 3. 检查年龄是否符合条件
if (user.age > 18) {
    // 4. 将结果保存到列表
    addToList(result, user);
    }
}
// 5. 关闭数据库连接
closeDB();
return result;
}

  2. SQL

    SELECT * FROM users WHERE age > 18;

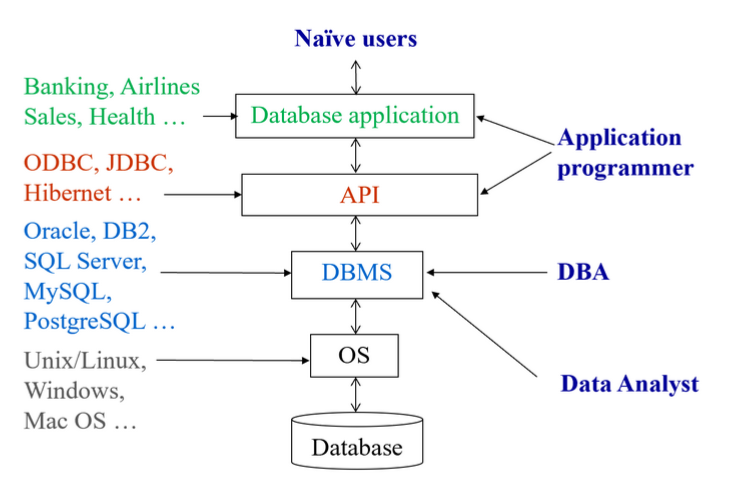

Database Access from Application Program

  • Application programs generally access databases through one of
    • Language extensions to allow embedded SQL
    • API（Application program interface） (e.g., ODBC/JDBC) which allow SQL queries to be sent to a database

两种方式本质区别在于如何将 SQL 查询与应用程序代码集成

Database Design

  • Entity Relationship Model（实体 - 联系模型）

    一对一 / 一对多 / 多对一 / 多对多

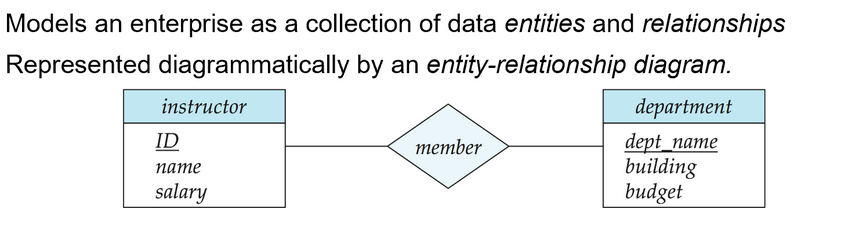

    Example

    Models an enterprise as a collection of dat entities and relationships

    属于多对多的 Entity Relationship Model

  • Normalizaiton Theory（规范化理论） 用来判断一个关系模式是否比较好

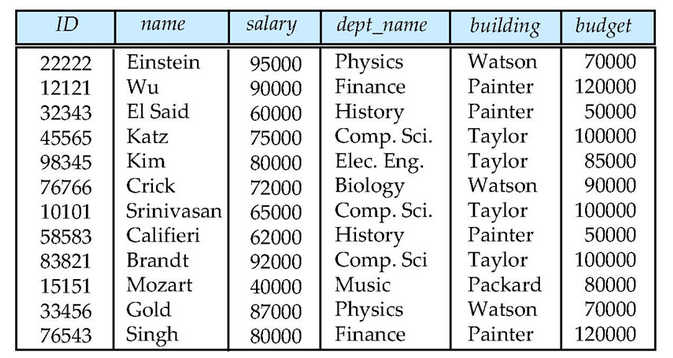

    Example

    显然这个表存在冗余，department 有重复，可以拆分为两个表（前四列和后三列）

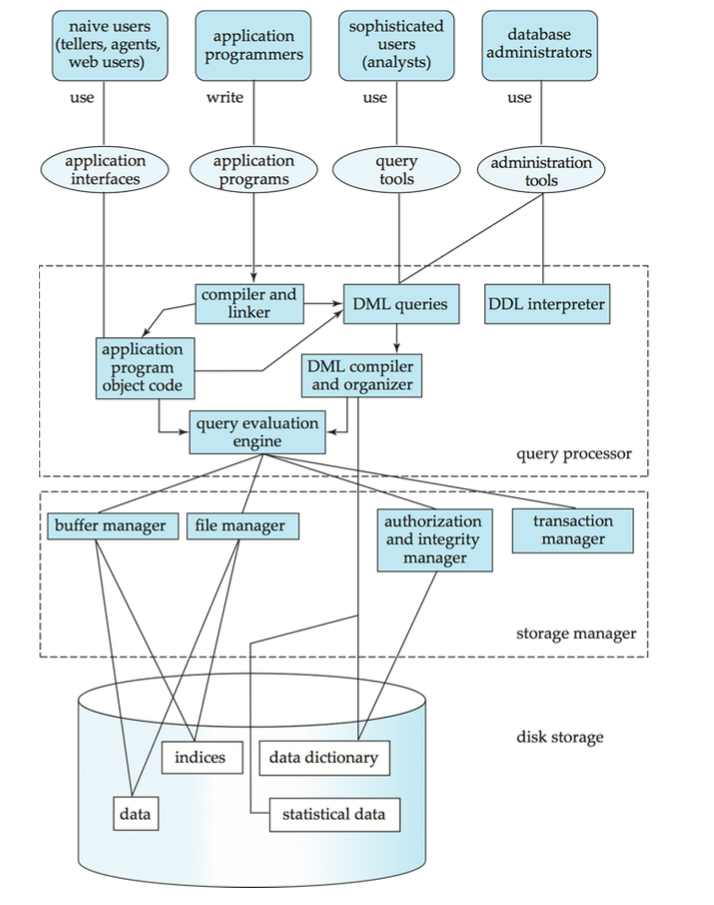

Database Engine

Storage Manager

数据库里放的是

  • data files 真正的数据
  • data dictionary 放的是 metadata
  • statistical data 用于数据库的查询处理
  • indices

Query Processor

The query processor components include:

  • DDL interpreter -- interprets DDL statements and records the definitions in the data dictionary.

  • DML compiler -- translates DML statements in a query language into an evaluation plan consisting of low-level instructions that the query evaluation engine understands.

    • The DML compiler performs query optimization ( 查询优化 ); that is, it picks the lowest cost evaluation plan from among the various alternatives.

    执行计划会根据统计数据的改变而改变。

  • Query evaluation engine -- executes low-level instructions generated by the DML compiler.

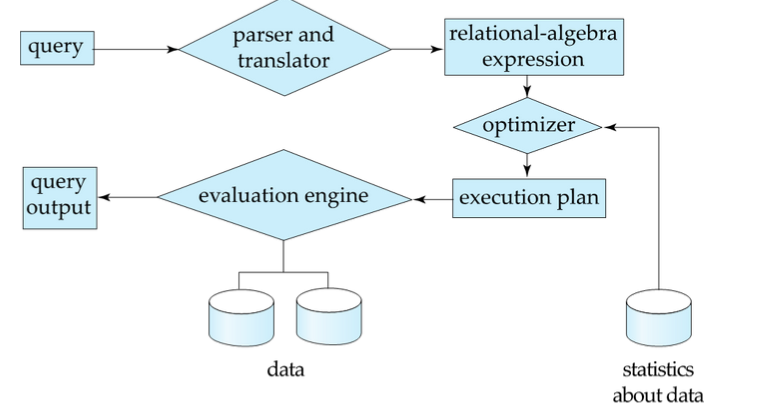

  • Parsing and translation

  • Optimization
  • Evaluation

Transaction Management

  • Recover Manager

    ensures that the database remains in a consistent (correct) state despite system failures (e.g. power failures and operating system crashes) and transaction failures.

    日志，防止写回数据库时出现断电或者崩溃。

  • Concurrency-control manager

    controls the interaction among the concurrent transactions, to ensure the consistency of the database.

Database User

  • Database Administrator (DBA) 数据库管理员，要做定义模式，数据库调谐，故障时恢复（备份）等工作。

History

  • 1973 Turing Award: Charles W. Bachman

    father of databases

  • 1981 Turing Award: Edgar F. Codd

  • 1998 Turing Award: Jim Gray
  • 2014 Turing Award: Michael Stonebraker
