Chap 10: Indexing

Basic Concepts

Indexing mechanisms used to speed up access to desired data.
索引用来加速查找。

Search Key - attribute to set of attributes used to look up records in a file.
An index file consists of records (called index entries) of the form.
索引文件通常是有顺序的

Index Evaluation Metrics

• Access types supported efficiently
  • Point query: records with a specified value in the attribute.
    点查询
  • Range query: records with an attribute value falling in a specified range of values.
    范围查询
• Access time
• Insertion time
• Deletion time
• Space overhead

Ordered Indices

• Primary index（主索引）: in a sequentially ordered file, the index whose search key specifies the sequential order of the file.
  • Also called clustering index（聚集索引）
  • The search key of a primary index is usually but not necessarily the primary key.
• Secondary index（辅助索引）: an index whose search key specifies an order different from the sequential order of the file. Also called non-clustering index.

Example

主索引和数据内的顺序是一样的。点查和范围查都是比较高效的。

如果 key 不是一个主键，那可能会对应多个记录。

Primary index 是很宝贵的，只能有一个，其他都是辅助索引。

• Dense index( 稠密索引 ) — Index record appears for every search-key value in the file.
  所有 search-key 都要出现在索引文件里。
• Sparse Index（稀疏索引）: contains index records for only some search-key values.

Example

Good tradeoff: sparse index with an index entry for every block in file, corresponding to least search-key value in the block.

Multilevel Index

If primary index does not fit in memory, access becomes expensive.
可以对索引文件本身再建立一次索引。

B+ Tree Index

• All paths from root to leaf are of the same length
• Inner node(not a root or a leaf): between \(\lceil n/2\rceil\) and \(n\) children.
• Leaf node: between \(\lceil (n–1)/2\rceil\) and \(n–1\) values
• Special cases:
  • If the root is not a leaf:
    at least 2 children.
  • If the root is a leaf :
    between 0 and (n–1)values.

一般一个节点就是一个块的大小 , 4K.
B+ 树的叉是非常大的。

Observations about B+ Trees

Since the inter-node connections are done by pointers, “logically” close blocks need not be “physically” close. 如果有很多文件一次性建立 B+ 树，我们可以从叶子节点开始建立。

如果有 K 个索引项，则树高度不会超过 \(\lceil \log_{\lceil n/2 \rceil}(K/2)\rceil + 1\).
高度最小为 \(\log_n(K)\)

Examples of Insert on B+ Tree

注意内点的 split 和叶子的不一样。要把中间的节点 move 上去。

Examples of Delete on B+ Tree

中间点如果不够，从另外一边借一个过来。但是不能直接借，需要把它顶上去。

注意考虑和兄弟合并。

B+- tree : height and size estimation

全满的时候节点最少
注意这里的向上/向下取整问题
浅层节点个数少，我们可以把第一层和第二层的节点都放到内存中 pin 住。

B+ Tree File Organization

文件组织
B+ Tree File Organization:

• Leaf nodes in a B+ Tree file organization store records, instead of pointers
  叶子节点不再放索引项，放记录本身。
• Helps keep data records clustered even when there are insertions/deletions/updates

我们可以改变半满的要求以提高空间利用率。

Other Issues in Indexing

• Record relocation and secondary indices
  If a record moves, all secondary indices that store record pointers have to be updated
  Node splits in B+ Tree file organizations become very expensive
  Solution: use primary-index search key instead of record pointer in secondary index
• Variable length strings as keys
  Variable fanout
• Prefix compression
  Key values at internal nodes can be prefixes of full key
  Keep enough characters to distinguish entries in the subtrees separated by the key value

Multiple-Key Access

Composite search keys are search keys containing more than one attribute
e.g. (dept_name, salary)

Lexicographic ordering: \((a_1, a_2) < (b_1, b_2)\) if either \(a_1 < b_1\), or \(a_1=b_1\) and \(a_2 < b_2\).

单个 key, 不同 key 之间组合都可以建立 B+ 树。这样会有很多组合，可以在频繁出现的查询属性上建立 B+ 树。

Non-unique Search Keys

我们可以在 B+ 树叶子节点不直接指向磁盘里的数据，而是指向一个块。
也可以在索引上加上去一个索引，使它对应的记录唯一。
可以通过范围查找

Bulk Loading and Bottom-Up Build

Inserting entries one-at-a-time into a B+ Tree requires \(\geq 1\) IO per entry

如果我们一次性插入很多索引项

• Efficient alternative 1: Insert in sorted order
  局部性较好，减少 I/O.
• Efficient alternative 2: Bottom-up B+ Tree construction
  • First sort index entries
  • Then create B+ Tree layer-by-layer, starting with leaf level
  • The built B+ Tree is written to disk using sequential I/O operations

Example

如果要排序的内容较大，无法放下内存，可以使用外部排序。
fanout 可以计算出来。
可以用 level-order 写到磁盘里，便于顺序访问所有索引，此时块是连续的。（便于顺序访问所有数据项）
这里的代价就是建好后，一次 seek 后全部写出去 (9 blocks)

Bulk insert index entries

Example

把刚刚那棵 B+ 树叶子节点（即遍历所有数据）需要 1seek+6blocks. 随后和上面的数据合并后，写回磁盘时需要 1seek+13blocks.

Merge two existing two B+ Trees , to create a new B+ Tree using the Bottom-UP Build algorithm, as in LSM-tree Index
假设有两棵这样生成的 B+ 树，将他们合并在一起。首先把叶子节点拿出来排序。

Indexing in Main Memory

cache 按 cache line 传输 , 只有 64B.

• Random access in memory
  • Much cheaper than on disk/flash, but still expensive compared to cache read
  • Binary search for a key value within a large B+ Tree node results in many cache misses
    二分查找可能带来很多 cache miss.
  • Data structures that make best use of cache preferable – cache conscious

B+- trees with small nodes that fit in cache line are preferable to reduce cache misses

并且由于顺着树往下查时只需要用到 search key，所以 search key 和 pointer 在 node 中可以分开放。

Key idea:

• use large node size to optimize disk access,
• but structure data within a node using a tree with small node size, instead of using an array, to optimize cache access.

Indexing on Flash

Flash 里不是即时修改，而是先擦掉再写。同时擦的次数是有限制的。因此最好的方法是从底构建，然后顺序写入。

• Random I/O cost much lower on flash
  20 to 100 microseconds for read/write
• Writes are not in-place, and (eventually) require a more expensive erase Optimum page size therefore much smaller
• Bulk-loading still useful since it minimizes page erases
• Write-optimized tree structures (i.e., LSM-tree, buffer tree) have been adapted to minimize page writes for flash-optimized search trees

下面介绍一些写优化索引结构

Log Structured Merge (LSM) Tree

• Records inserted first into in-memory tree (\(L_0\) tree)
• When in-memory tree is full, records moved to disk (\(L_1\) tree)
  B+ Tree constructed using bottom-up build by merging existing \(L_1\) tree with records from \(L_0\) tree
  内存里的 B+ 树如果满了，就马上写到磁盘里去（可以连续写）
• When \(L_1\) tree exceeds some threshold, merge into \(L_2\) tree
  And so on for more levels
  Size threshold for \(L_{i+1}\) tree is \(k\) times size threshold for \(L_i\) tree

这样我们把随机写变为了顺序写。但此时查找一个索引，就要遍历所有 B+ 树。

• Benefits of LSM approach
  • Inserts are done using only sequential I/O operations
  • Leaves are full, avoiding space wastage
  • Reduced number of I/O operations per record inserted as compared to normal B+ Tree (up to some size)
• Drawback of LSM approach
  • Queries have to search multiple trees
  • Entire content of each level copied multiple times

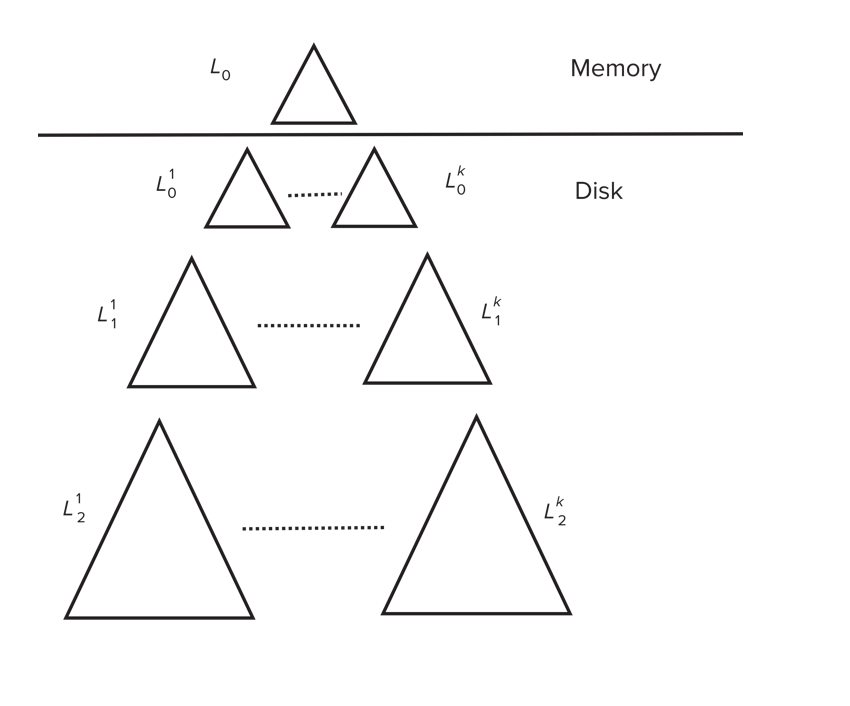

Stepped Merge Index
原先的结构中，Merge 操作太多，我们可以一次性合并。 磁盘上每层有 k 棵树，当 k 个索引处于同一层时，合并它们并得到一棵层数 \(+1\) 的树，写回。
\(L_1\) 有大小限制，达到后会生成另一个 B+ 树，依次为 k 倍。

• Reduces write cost compared to LSM tree
• But queries are even more expensive since many trees need to be queries

Optimization for point lookups - Compute Bloom filter for each tree and store in-memory - Query a tree only if Bloom filter returns a positive result

LSM 的删除和更新如下

• Deletion handled by adding special “delete” entries
  • Lookups will find both original entry and the delete entry, and must return only those entries that do not have matching delete entry
  • When trees are merged, if we find a delete entry matching an original entry, both are dropped.
• Update handled using insert+delete
• LSM trees were introduced for disk-based indices
  • But useful to minimize erases with flash-based indices
  • The stepped-merge variant of LSM trees is used in many BigData storage systems
  • Google BigTable, Apache Cassandra, MongoDB
  • And more recently in SQLite4, LevelDB, and MyRocks storage engine of MySQL

Buffer tree

sjl 上课没讲过，但是说上次期末考了这个东西，让我们自学

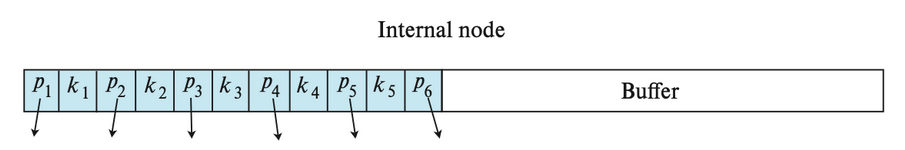

• Key idea: each internal node of B+ tree has a buffer to store inserts
  • Inserts are moved to lower levels when buffer is full
  • With a large buffer, many records are moved to lower level each time
  • Per record I/O decreases correspondingly
• Benefits
  • Less overhead on queries
  • Can be used with any tree index structure
  • Used in PostgreSQL Generalized Search Tree (GiST) indices
• Drawback: more random I/O than LSM tree

简要来说就是每插入一条记录，不会遍历节点到叶子节点中插入，而是直接插入在根节点的缓冲区中，直到缓冲区满再逐级向下搬

总体而言，读操作相比 LSM 树更快，写操作相比 LSM 树更慢。

Bitmap indices

这里上课也没讲过，但是小测和 ppt 中都有涉及

• Bitmap indices are a special type of index designed for efficient querying on multiple keys
• Applicable on attributes that take on a relatively small number of distinct values
  • E.g., gender, country, state, …
  • E.g., income-level (income broken up into a small number of levels such as 0-9999, 10000-19999, 20000-50000, 50000- infinity)
• A bitmap is simply an array of bits

位图索引 (bitmap indices) 是一类适用于对多个键做简单查询的索引。在使用位图索引前，需要为关系中的每条记录标号（从 0 开始）。如果记录的大小固定，且被分配在某个文件内的连续块上，这一操作还是很容易的，此时记录编号就可以被转换为块编号。

位图 (bitmap) 就是一组位，对于关系 \(r\) 的属性 \(A\)，位图索引包含了 \(A\) 可取的每个值，而位的数量对应记录的数量。对于某个值 \(v_j\)​ 的位图，如果编号为 \(i\) 的记录的属性值为 \(v_j\)​，那么该位图的第 \(i\) 位置 1，否则置 0。

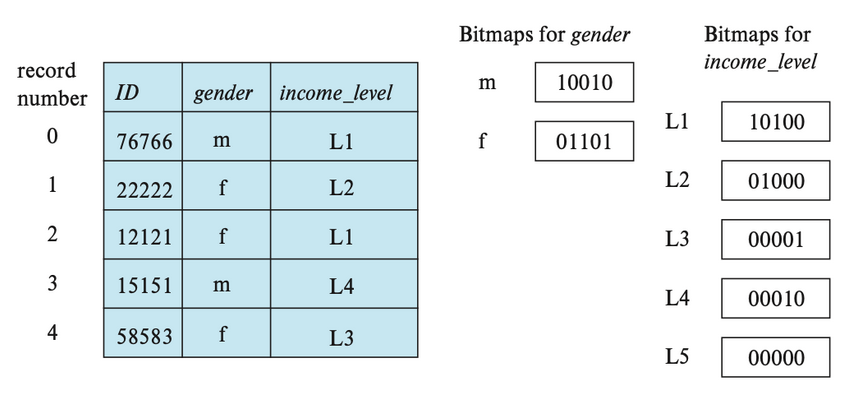

下面就是一个位图索引的例子：

对于以下查询：

SELECT *
FROM instructor_info
WHERE gender = 'f' AND income_level = 'L2';

我们找到 gender 属性值为 f，以及 income_levelincome_level 属性值为 L2 的位图，然后对这两个位图进行交 (intersection) 运算（实际上是一个逻辑与的运算）。根据上图，gender = f 对应的位图为 (01101)，income_level = L2 对应的位图为 (01000)，交运算后的位图是 01000，也就是说，编号为 1 的记录就是我们要查询的记录。
